  • CS 77

Optimised safety and comfort

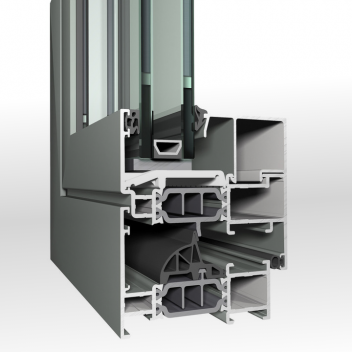

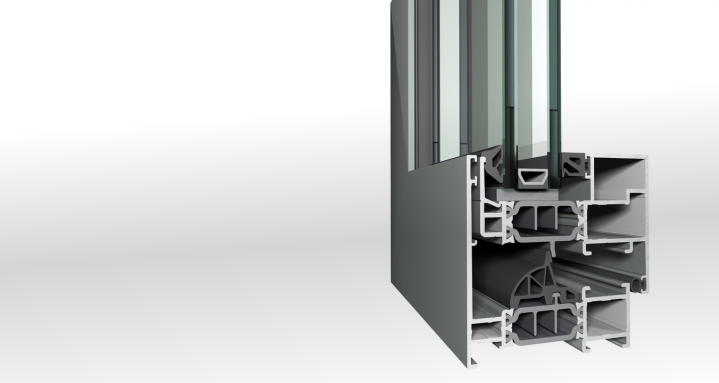

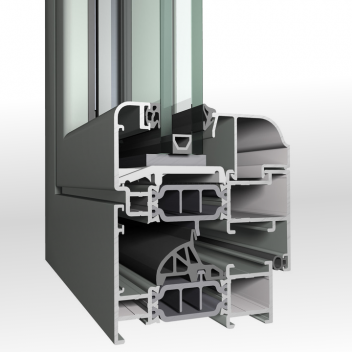

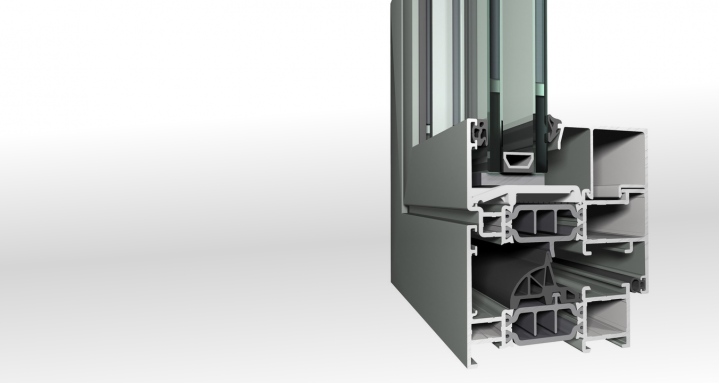

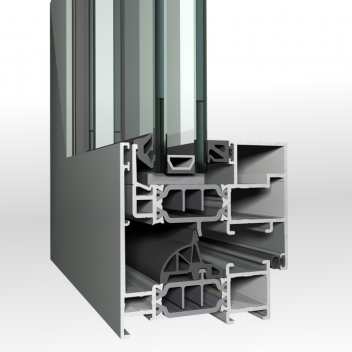

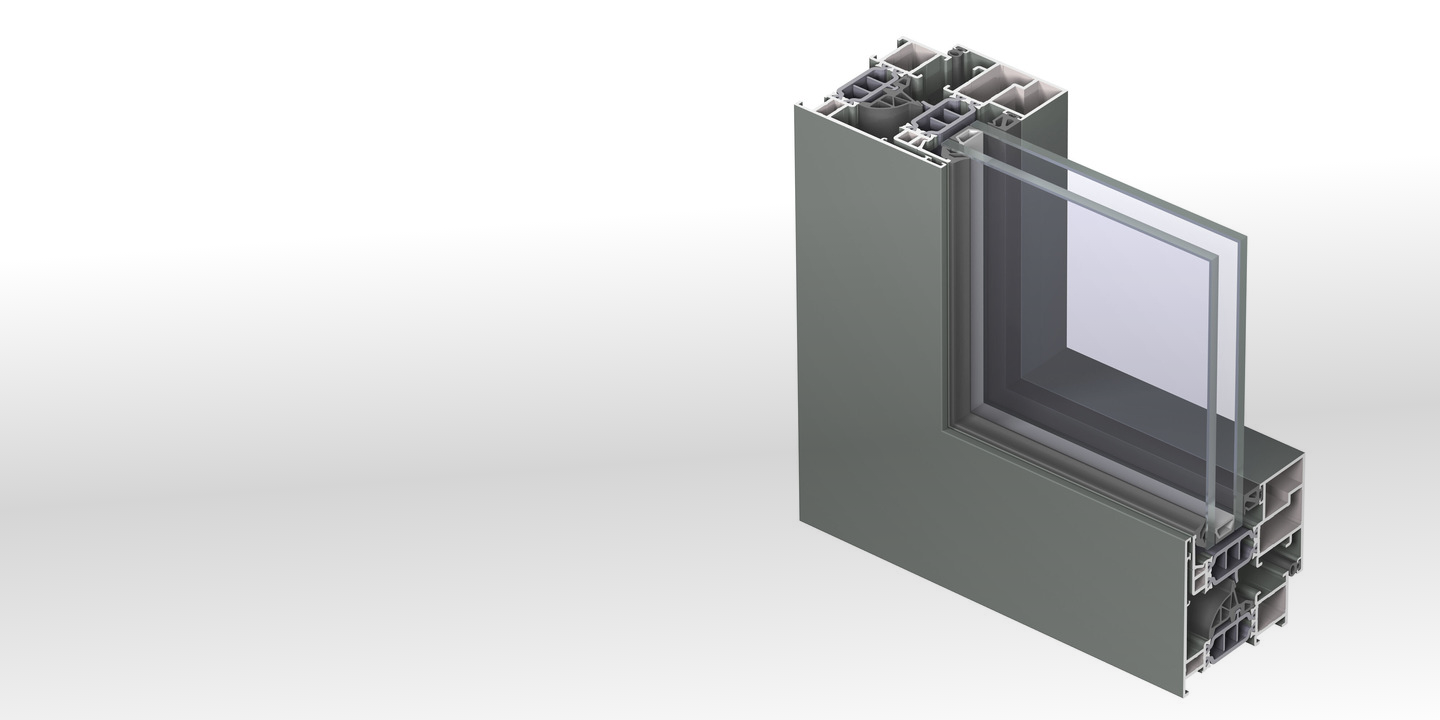

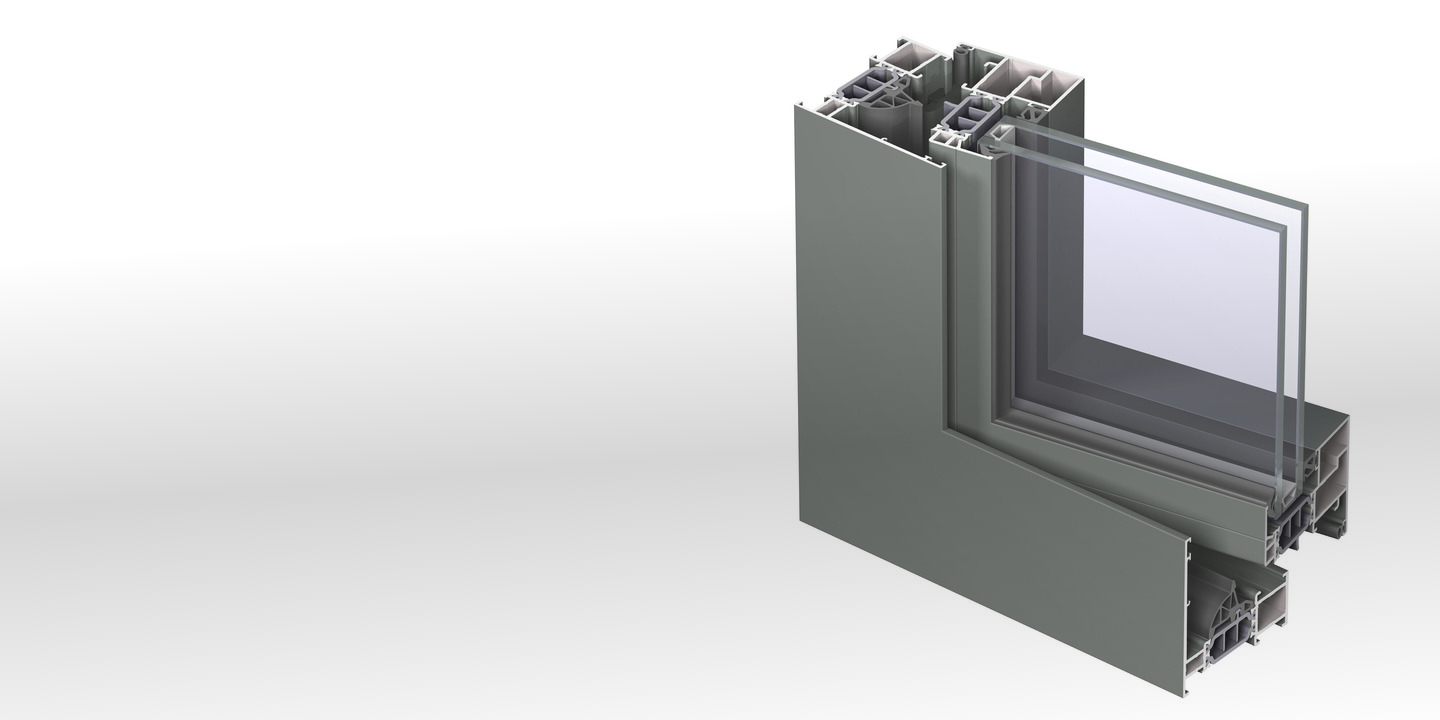

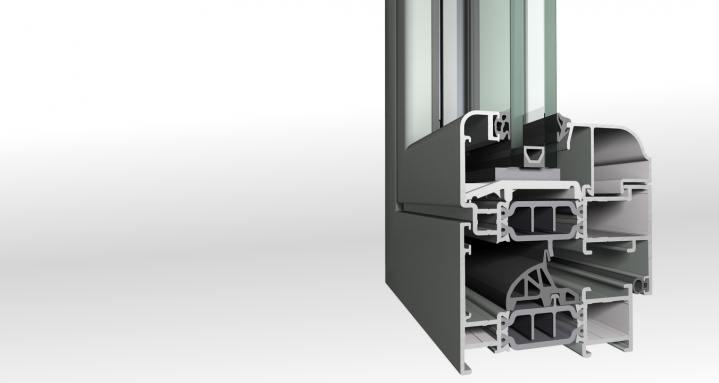

Concept System® 77 is a high insulating window system that meets elevated requirements regarding thermal insulation, stability and security. Anticipating on the thermal requirements, the insulation value (Uf) for the HI+ variant of this system goes down to 1.7 W/m²K for a standard opening window. The unique concept of the system makes it perfectly suitable for triple glazing and CS 77 even achieved the Swiss Minergie® component label.

The system’s performance regarding acoustics, water- and air tightness, but also for specific applications like Bullet - and Fire Resistance, meets the most severe European standards. Moreover, CS 77 windows are available in different burglar resistance levels (class 2 & 3) making it an extremely secure system.
To match the different building types, the system is available in a variety of aesthetic styles: Functional, Softline and Hidden Vent.

The CS 77 system includes the most complete range of solutions for all types of inward and outward opening windows. Ultimate combination possibilities, also with CS 77 doors, CP 130 sliding systems and Ventalis® ventilation units, makes CS 77 extremely suitable for all types of building concepts, even with the highest safety requirements.

  • Shortly
  • Dimensions



Comfort



Air tightness max. test pressure 4 (600 Pa)
Water tightness 9A (600 Pa)
Wind load resistance C3 (1200 Pa)
Acoustic performance Rw(C;Ctr) = 42(-2; -4) dB



Safety



Burglar resistance RC2/WK2
RC3/WK3



Energy



Thermal insulation (Uf) 1,8 W/m²K
Min. Visible width frame: inward opening 51 mm
Min. Visible width vent: inward opening 33 mm
Min. Visible width frame-vent: inward opening 89 mm
Min. Visible width frame: outward opening 17.5 mm
Min. Visible width frame-vent: outward opening 76 mm
Min. Visible width T-profile 76 mm
Max. height vent 2800 mm
Max. width vent 1200 mm
Max. weight vent (element) 170 kg
Overall system depth frame 68 mm
Overall system depth vent 77 mm
Rebate height 25 mm
Min. Glass thickness 4 mm
Max. Glass thickness 52 mm
Min. Glass thickness vent 4 mm
Max. Glass thickness vent 63 mm
