  • CS 77

Optimised safety and comfort

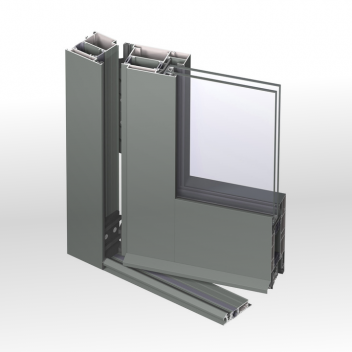

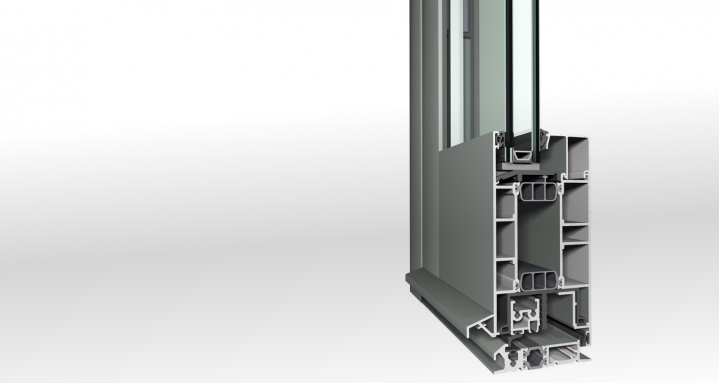

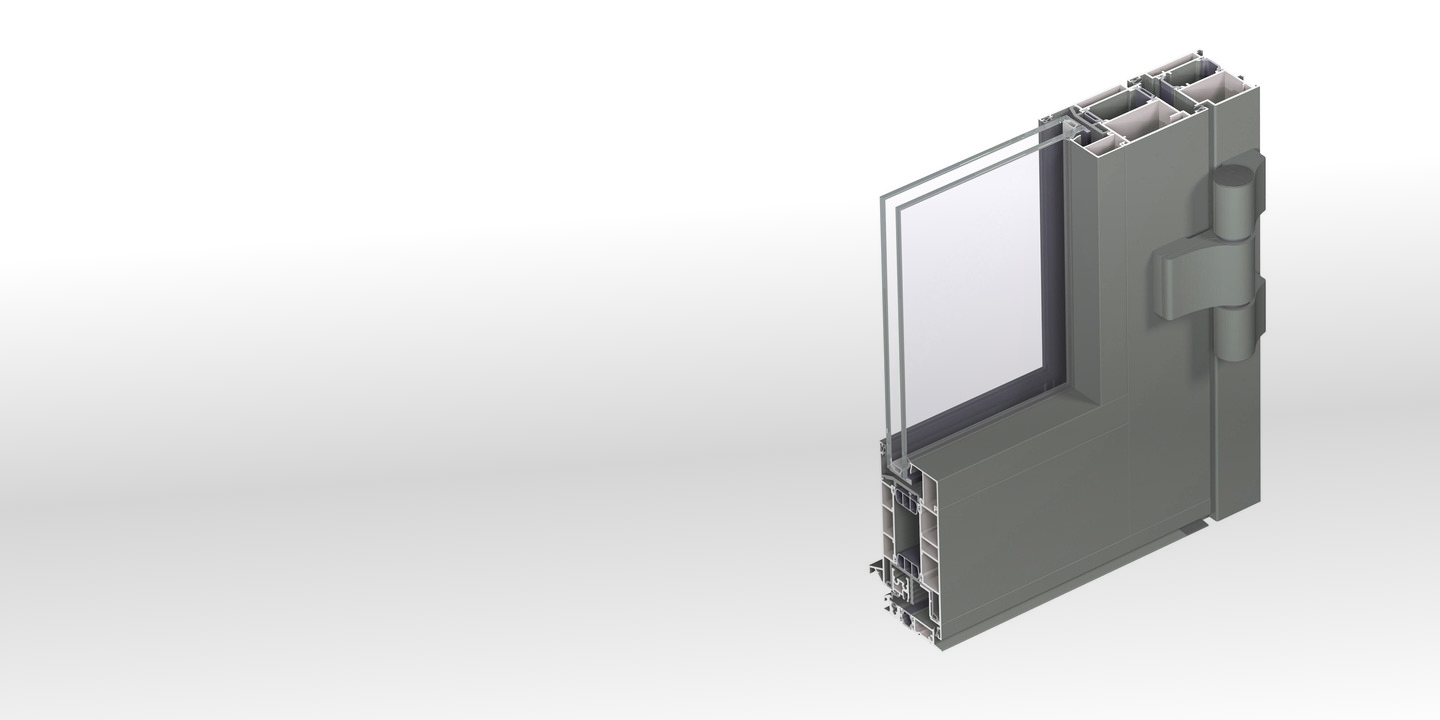

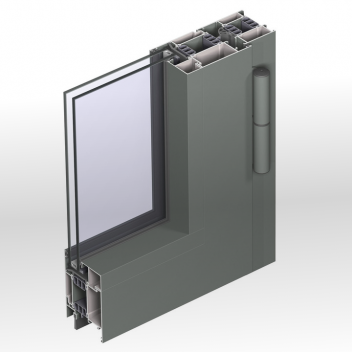

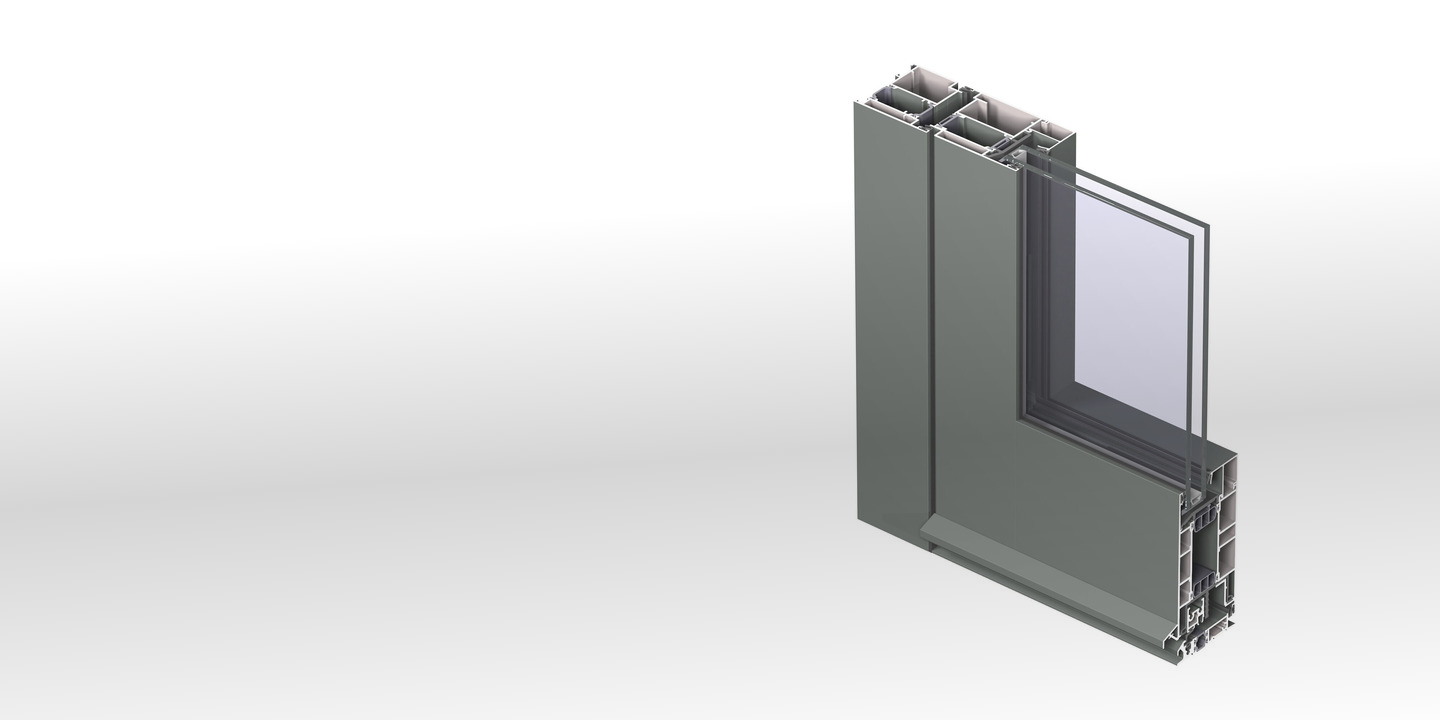

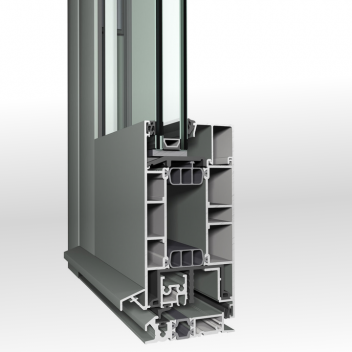

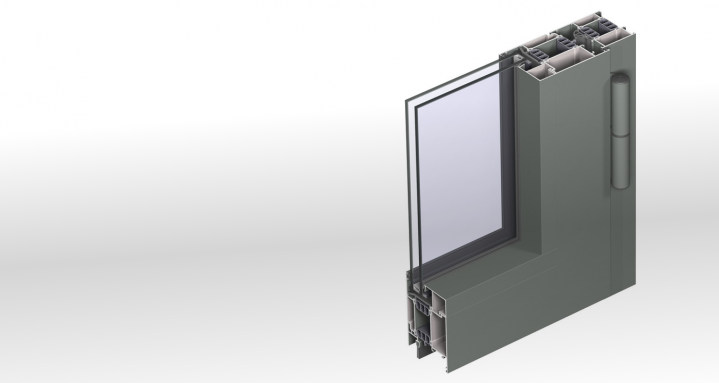

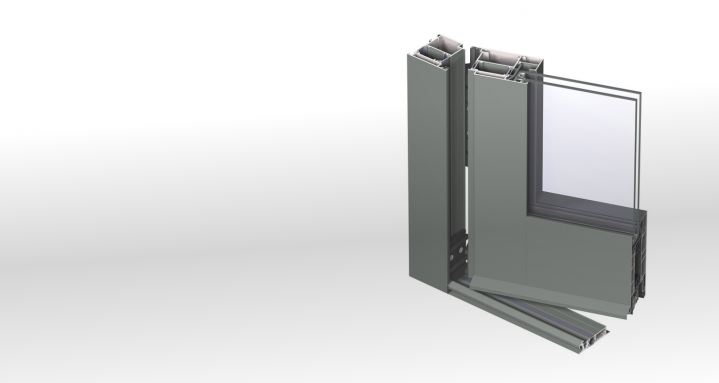

Concept System® 77 includes a high-quality flush door system, which meets the elevated requirements regarding thermal insulation, stability and security. With regard to security, different door variants are specially designed and tested for burglar resistance, fire resistance, bullet proof and solutions for panic situations, meeting the most severe European standards. This standard flush door range is available in all inward and outward opening types, realised with a wide range of door locks to meet every kind of locking demand. Moreover, CS 77 flush doors are offered with different threshold solutions to perfectly match all comfort and aesthetic requirements. To ensure the tightness of the door, specially designed insulation strips are used to avoid possible bending of the element, caused by temperature difference between the in- and outside of the building.

  • Shortly
  • Dimensions



Comfort



Air tightness max. test pressure 4 (600 Pa)
Water tightness 7A (300 Pa)
Wind load resistance C2 (800 Pa)
Acoustic performance Rw(C;Ctr) = 42(-1;-4) dB



Safety



Burglar resistance RC2/WK2
RC3/WK3



Energy



Thermal insulation (Uf) 150mm: 2,1 W/m²K
Min. Visible width frame: inward opening 68 mm
Min. Visible width vent: inward opening 76 mm
Min. Visible width frame-vent: inward opening 150 mm
Min. Visible width frame: outward opening 42 mm
Min. Visible width frame-vent: outward opening 102 mm
Min. Visible width T-profile 76 mm
Max. height vent 3000 mm
Max. width vent 1400 mm
Max. weight vent (element) 250 kg
Overall system depth frame 68 mm
Overall system depth vent 68 mm
Rebate height 25 mm
Min. Glass thickness 4 mm
Max. Glass thickness 52 mm
Min. Glass thickness vent 4 mm
Max. Glass thickness vent 52 mm
