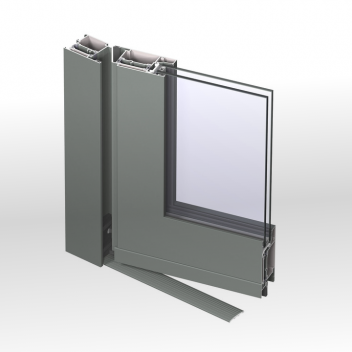

ES 50
-
Simply smart

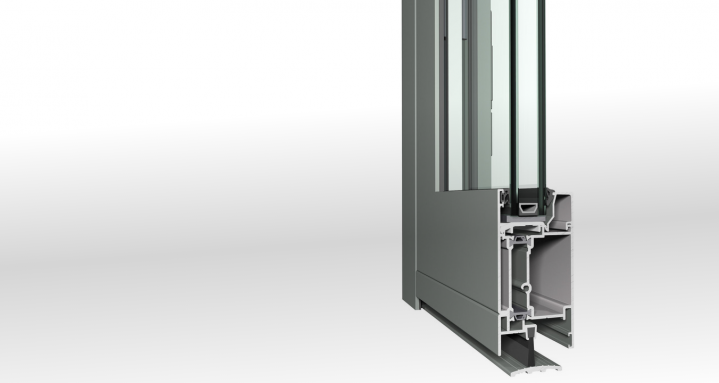

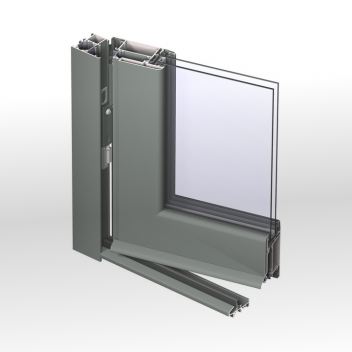

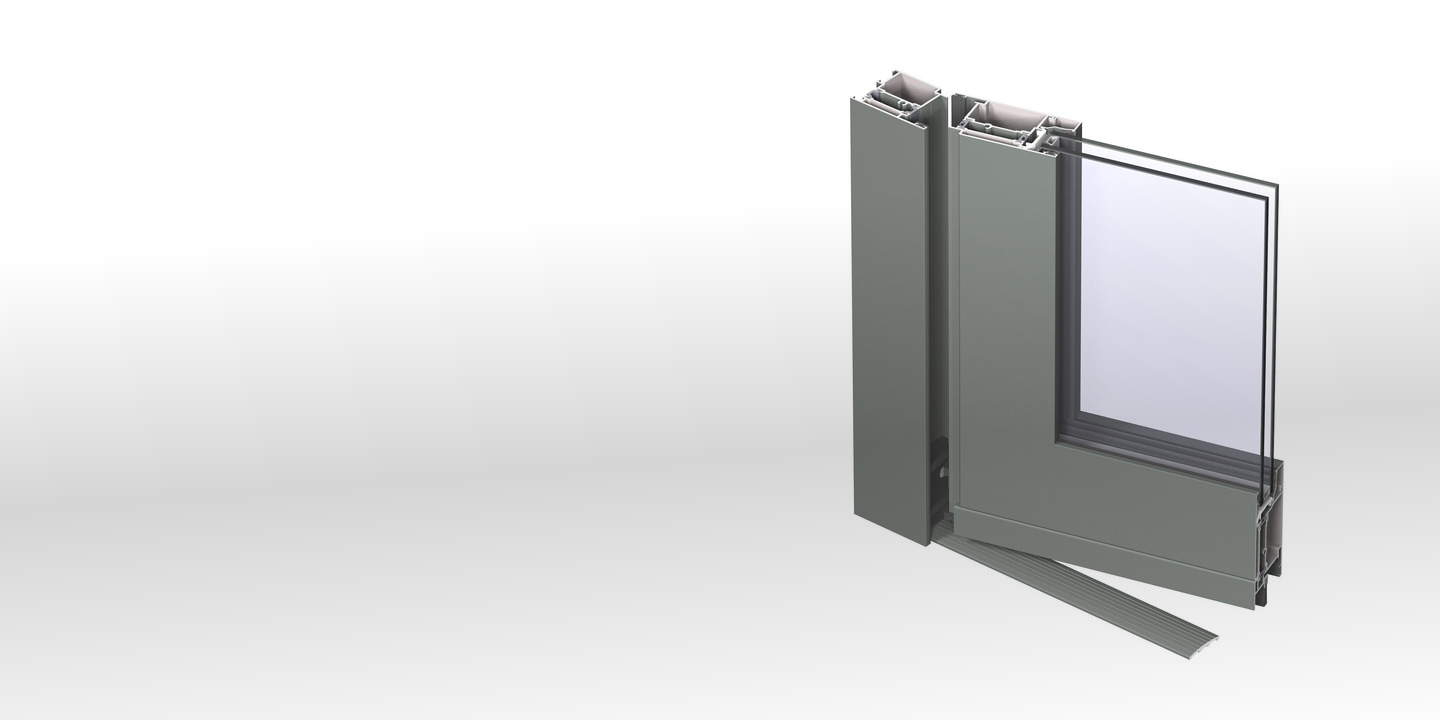

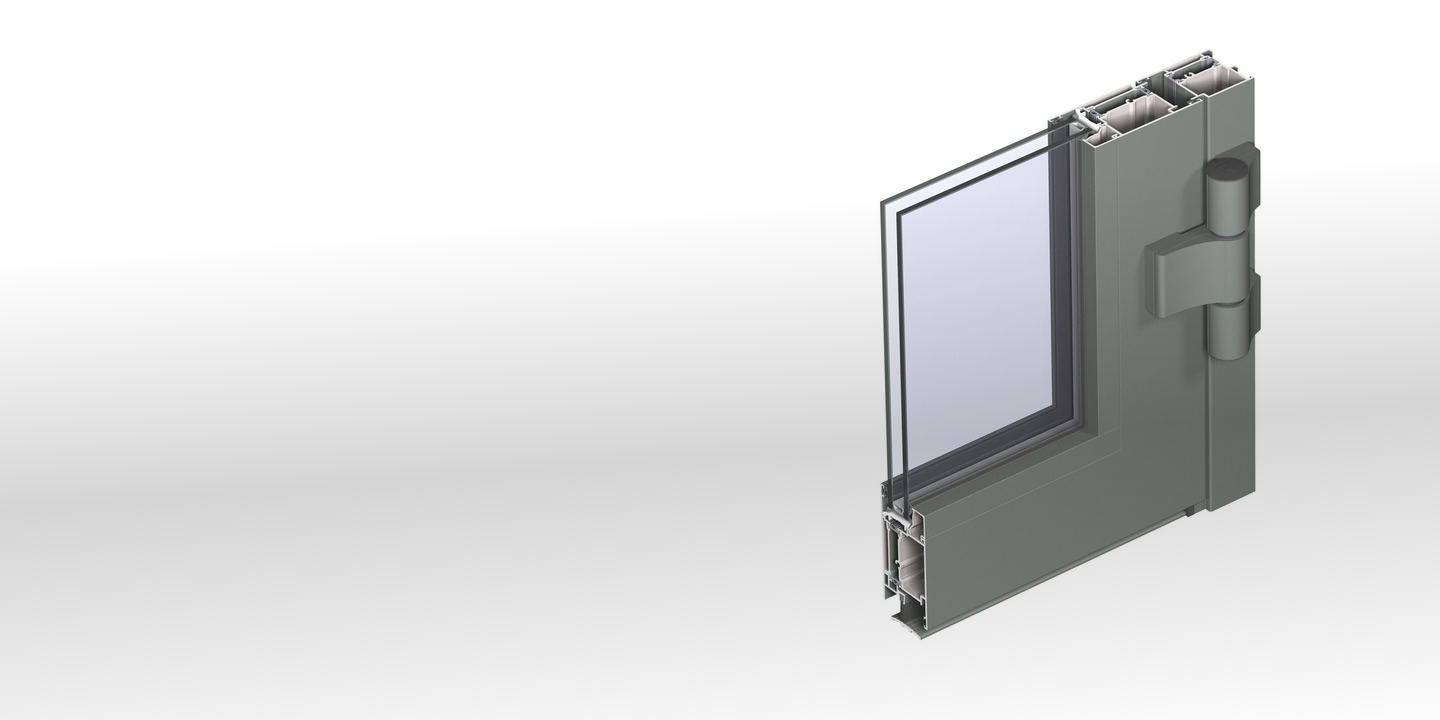

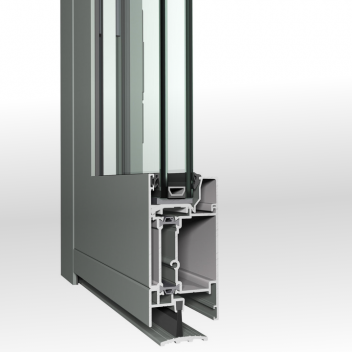

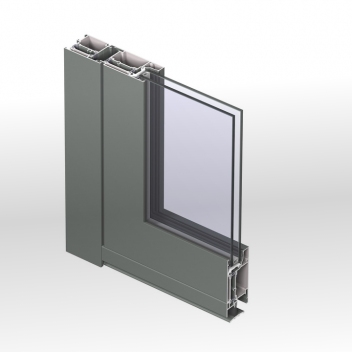

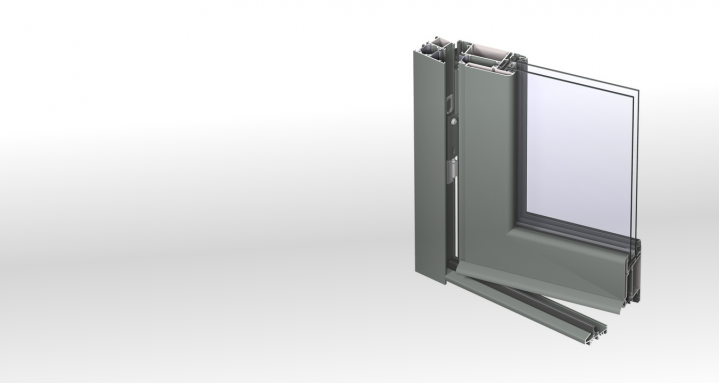

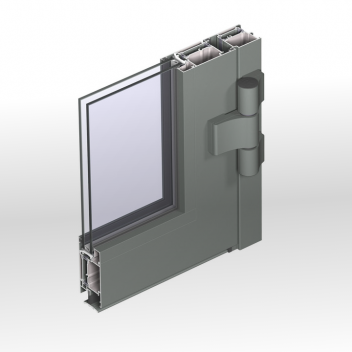

Eco System® 50 includes a well-insulated flush door system that combines aesthetic design, energy efficiency with a moderate price. All types of inward and outward opening doors and flush doors can be realised with ES, perfectly matching the ES window system. In addition, ES doors can comply with burglar resistance class 2, offering a safe and secure solution both for residential constructions and utility buildings.
Comfort
| Air tightness max. test pressure | 4 (600 Pa) |
| Water tightness | 4A (150 Pa) |
| Wind load resistance | C2 (800 Pa) |
| Acoustic performance | Rw(C;Ctr) = 40(-2;-4) dB |
Energy
| Thermal insulation (Uf) | 3,2 W/m²K |
| Min. Visible width frame: inward opening | 67 mm |
| Min. Visible width vent: inward opening | 74 mm |
| Min. Visible width frame-vent: inward opening | 146 mm |
| Min. Visible width frame: outward opening | 42 mm |
| Min. Visible width frame-vent: outward opening | 146 mm |
| Min. Visible width T-profile | 70 mm |
| Max. height vent | 3000 mm |
| Max. width vent | 1400 mm |
| Overall system depth frame | 50 mm |
| Overall system depth vent | 50 mm |
| Rebate height | 22 mm |
| Min. Glass thickness | 4 mm |
| Max. Glass thickness | 32 mm |
