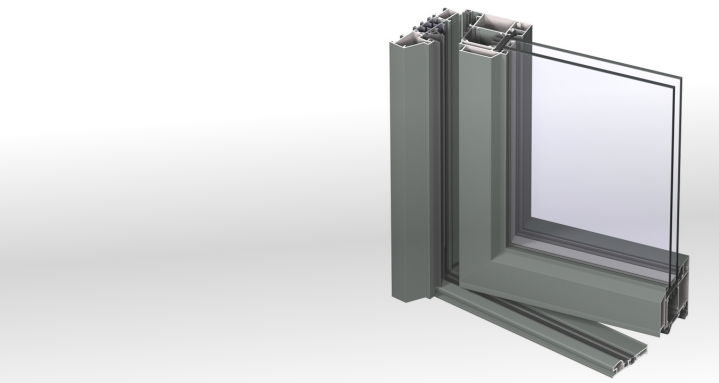

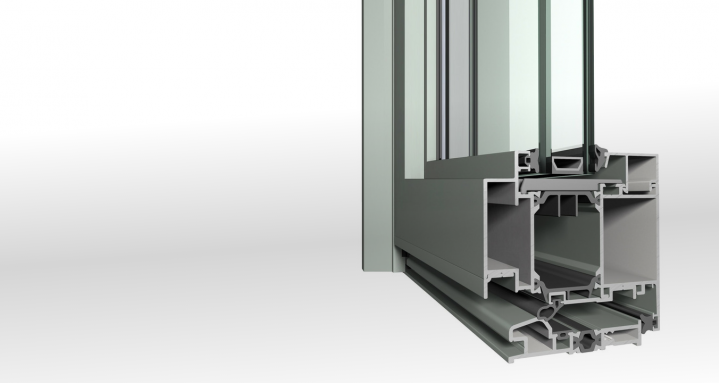

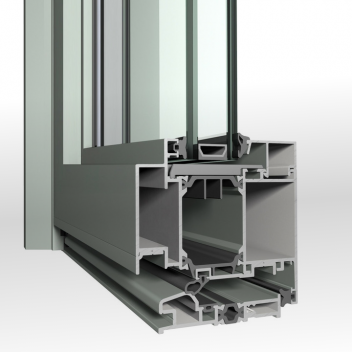

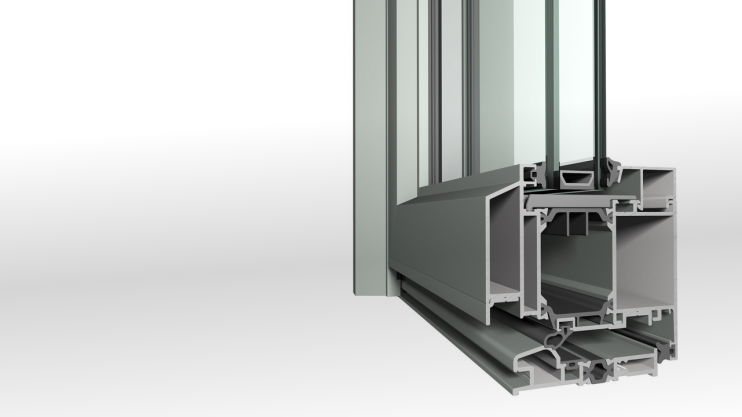

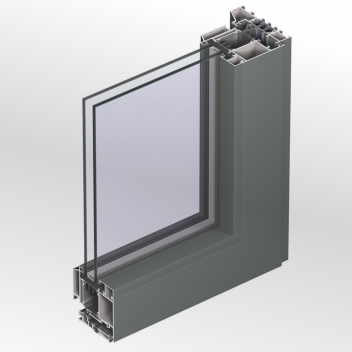

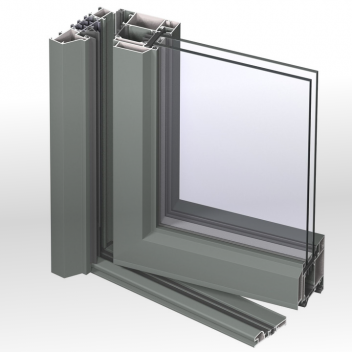

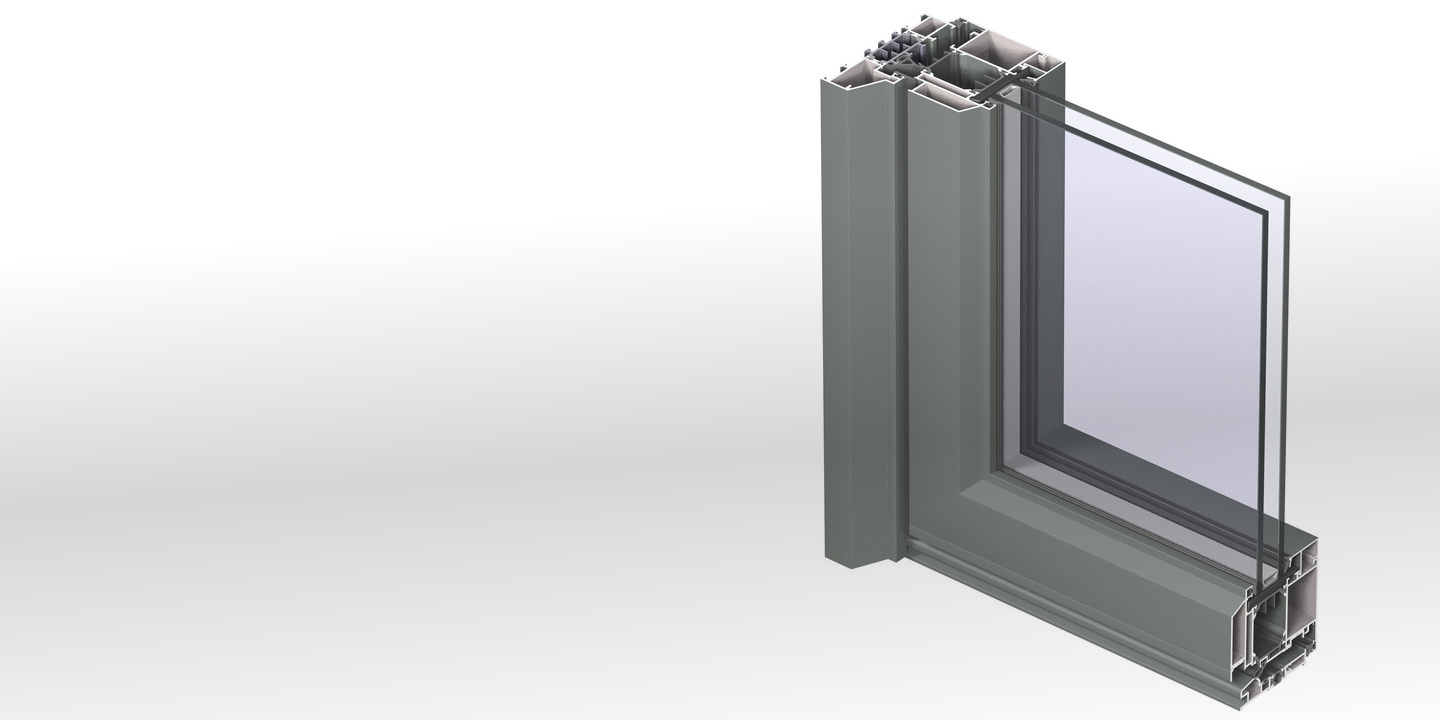

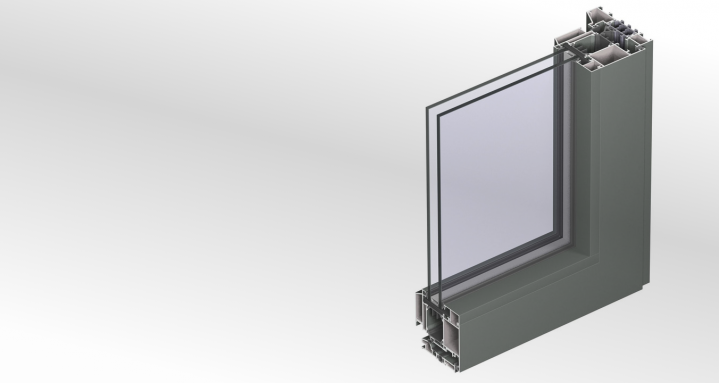

SlimLine 38
-
SlimLine 38 is a highly insulated system inward and outward opening windows and doors, which combines elegance and comfort, with a unique design.
This special slender steel look is the perfect solution for modern architecture and renovation of steel-framed windows, respecting the original design but offering a thermally improved solution.
In combination with its superior insulation capabilities, the system provides the perfect harmony between durable material, clean design and demanding architectural challenges.
Comfort
| Air tightness max. test pressure | 3 (600 Pa) |
| Water tightness | 4A (150 Pa) |
| Wind load resistance | C3 (1200 Pa) |
| Acoustic performance | Rw(C;Ctr) = 38(-1;-4) dB - Rw(C;Ctr) = 45 (-1;-5) dB |
Safety
| Burglar resistance | RC2/WK2 |
Energy
| Thermal insulation (Uf) | 1,9 W/m²K |
| Min. Visible width frame: inward opening | 38.5 mm |
| Min. Visible width vent: inward opening | 43 mm |
| Min. Visible width frame-vent: inward opening | 101.5 mm |
| Min. Visible width frame: outward opening | 48 mm |
| Min. Visible width frame-vent: outward opening | 82 mm |
| Min. Visible width frame-vent: outward opening | 82 mm |
| Min. Visible width frame-vent: outward opening | 82 mm |
| Min. Visible width T-profile | 48 mm |
| Max. height vent | 2500 mm |
| Max. width vent | 1250 mm |
| Overall system depth frame | 99 mm |
| Overall system depth vent | 86 mm |
| Rebate height | 13.5 mm |
| Min. Glass thickness | 16 mm |
| Max. Glass thickness | 55 mm |
