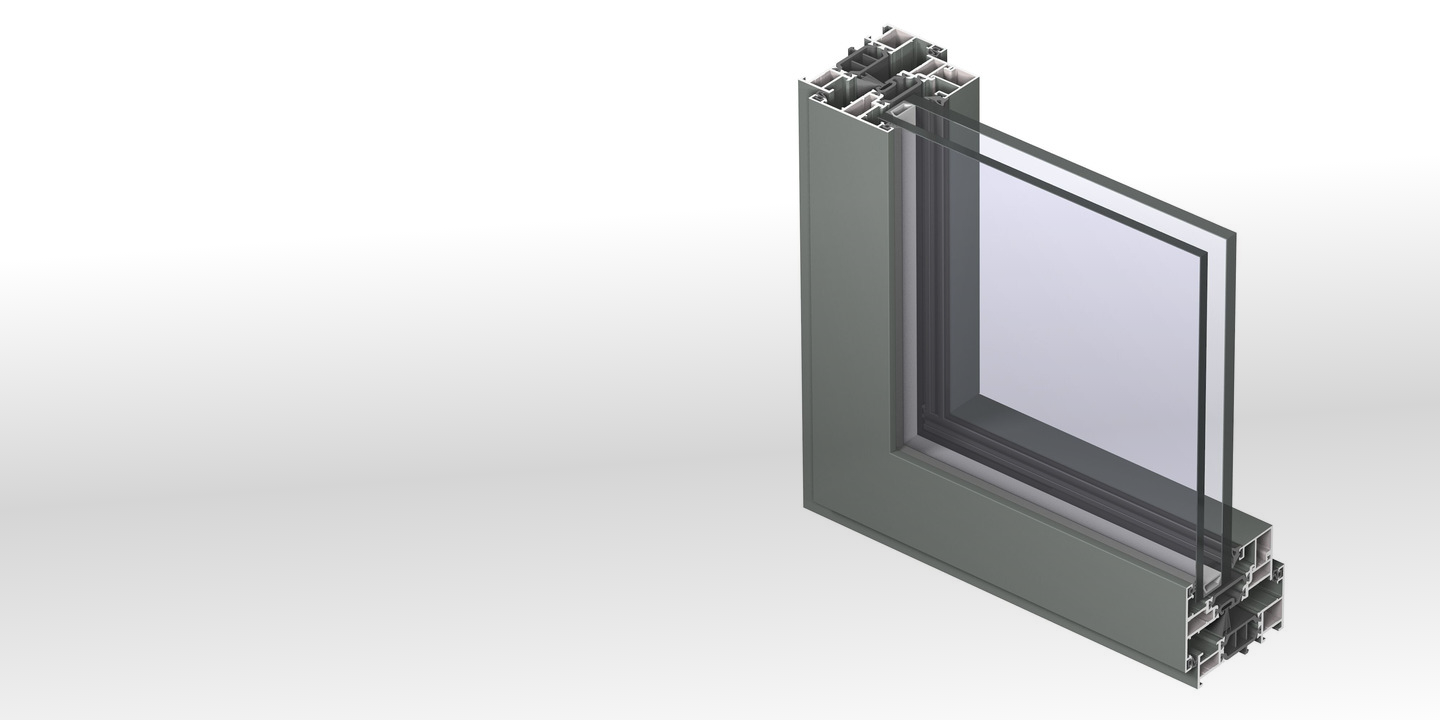

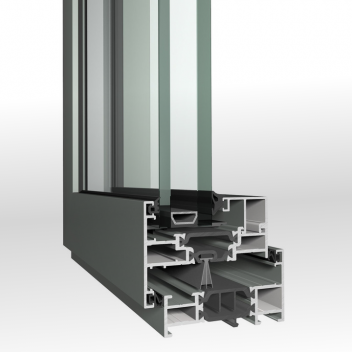

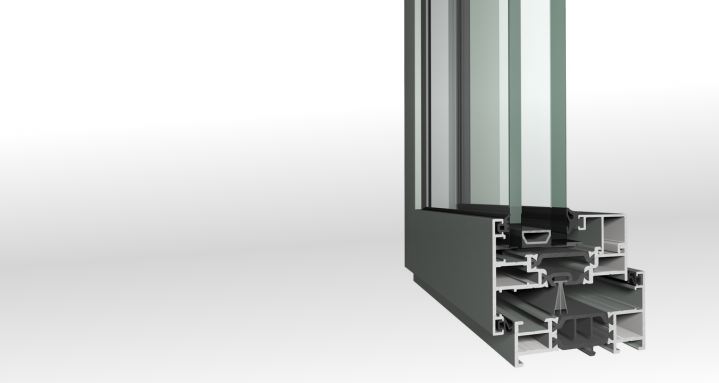

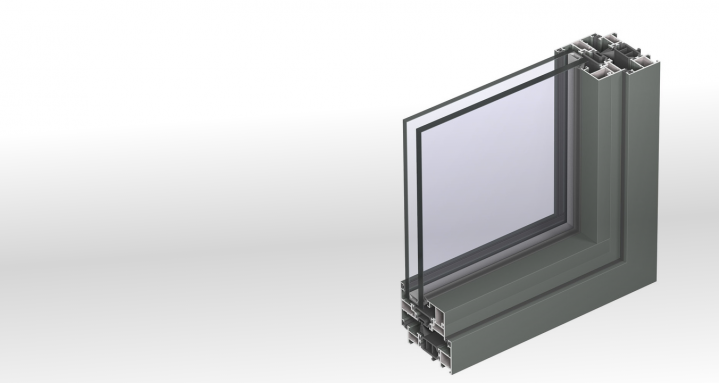

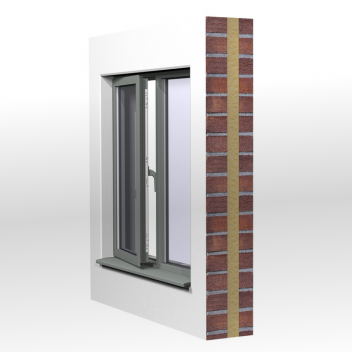

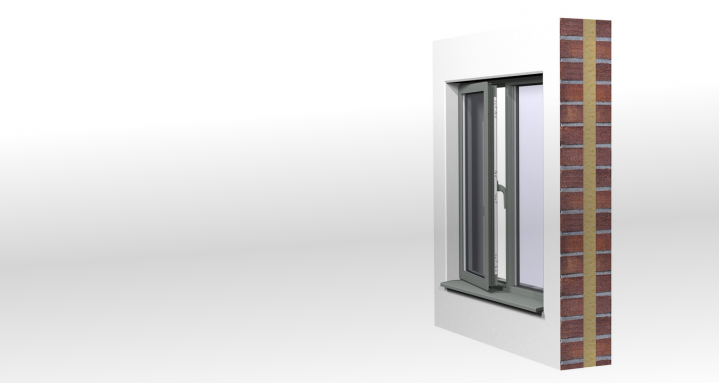

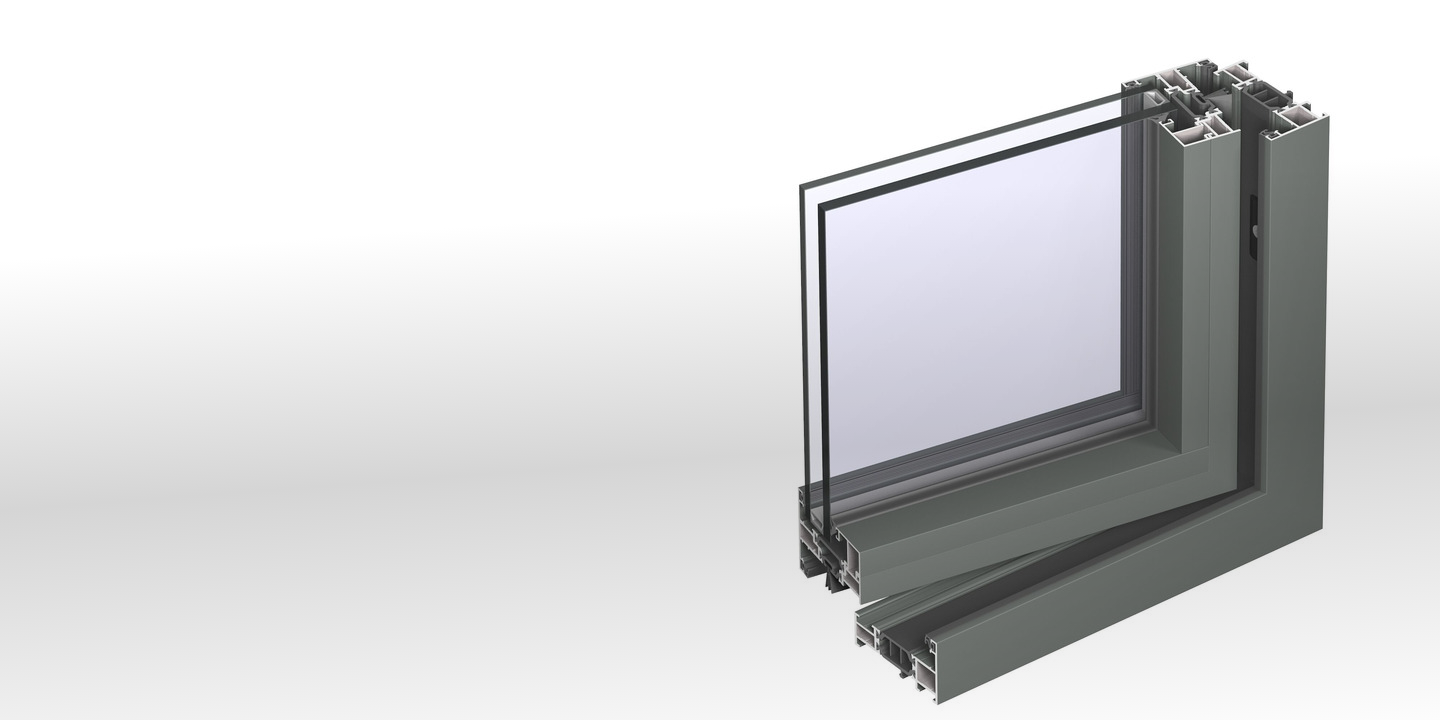

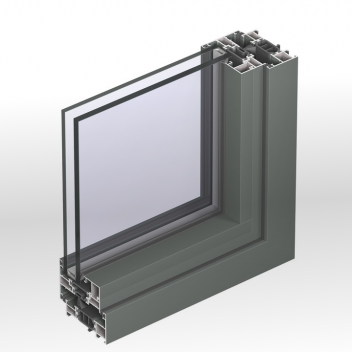

SlimLine 68 window

The new SlimLine 68 outward opening windows allow for maximum daylight access and feature excellent weather resistance and optimal insulation properties. The ultra slim sight lines ensure that even in small openings daylight access isn’t compromised in favour of performances. This makes SlimLine 68 windows the ideal solution for renovation purposes in domestic buildings and new builds as well.

SlimLine 68 vents can be glazed from the inside as well as the outside, and are available on a standard and a HI insulation level.

  • Shortly
  • Dimensions



Comfort



Air tightness max. test pressure 4 (600 Pa)
Water tightness E1200 (1200 Pa)
Wind load resistance Exxx (>2000 Pa)
Acoustic performance Rw(C;Ctr) = 47(-2;-7) dB



Safety



Burglar resistance PAS 24



Energy



Thermal insulation (Uf) Uw: 1,4 W/m²K
Min. Visible width frame: outward opening 15 mm
Min. Visible width frame-vent: outward opening 65 mm
Min. Visible width T-profile 50 mm
Max. height vent 1500 mm
Max. width vent 1200 mm
Overall system depth frame 68 mm
Overall system depth vent 68 mm
Rebate height 18 mm
Min. Glass thickness 26 mm
Max. Glass thickness 43 mm
Min. Glass thickness vent 26 mm
Max. Glass thickness vent 43 mm
Glazing method Dry glazing with EPDM or neutral silicones
Thermal break Omega Shaped Fibreglass
Printable version Download
