Windows of extraordinary design for modern architectural structures. The door sash and frame are on the same plane on the exterior.

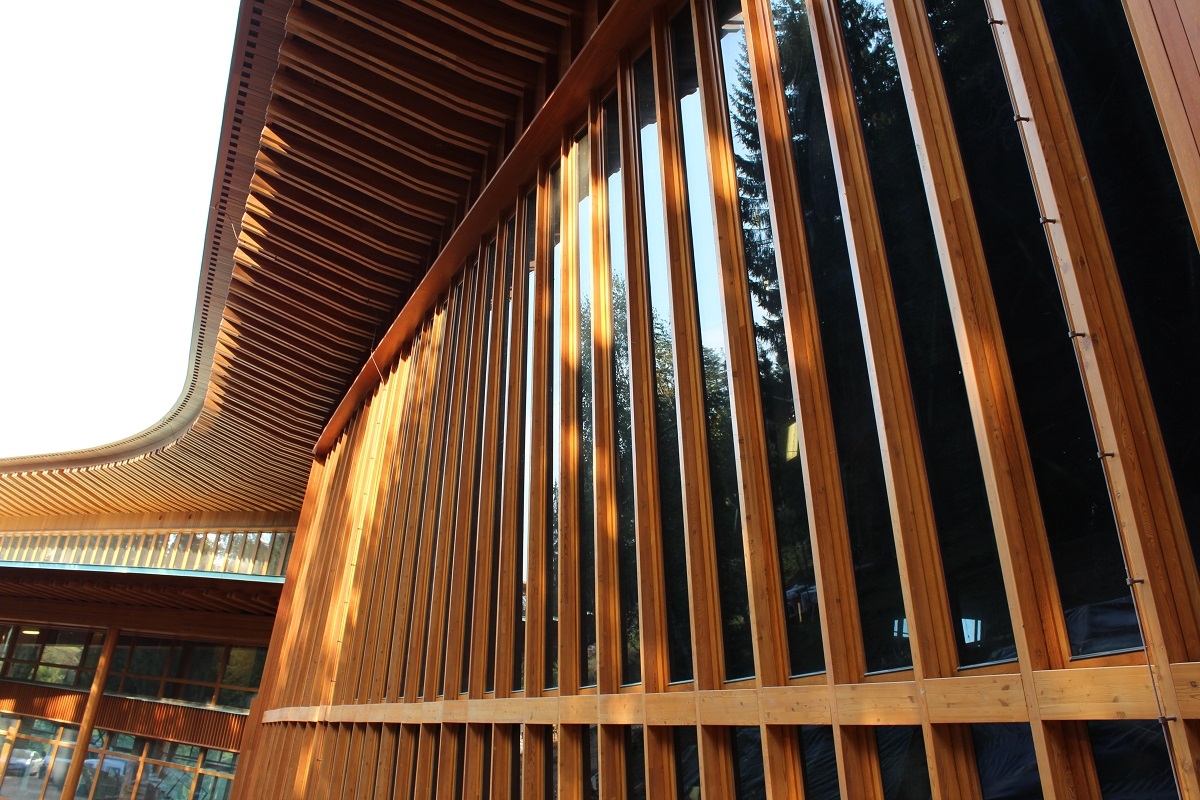

It is also possible to order arched windows as well as exterior and sliding doors of analogous designs. The windows may be integrated in wood and glass façade systems with astonishing results. Glass Unit Size: up to 62mm.
| Uw | 0.91 W/m2*K** |
| Rw | 35 dB** |
| Pane | 2–3 glass unit |
| Warranty | 5 years.* |
* The warranty for window outdoor topping is provided subject to the type of wood and painting.
** Uw and Rw calculated for a window:
Measurements: height 1480 mm, width 1230 mm.
Type of opening: internal opening, right.
Bindings: ROTO. Fastening: 7 fixing points in perimeter.
Gaskets: SCHLEGEL foam. Sealing sets: 2.
Pane: glass unit, 4-14Ar-4-14Ar-4 (two glasses covered with selective openings filled with argon gas, differential frames are aluminium).
| Material used: | |
| Types of wood: | tenon pine, non-tenon pine, meranti, larch, gumtree, oak, etc. |
| Painting: | Teknos/Finland/ |
| Aluminium profiles: | Gutmann/Germany/ |
| Bindings: | Roto/Germany/G. U./Germany/ |
| Glasses: | Saint-Gobain/France/ |
| Gaskets: | Schlegel Q-Lon/Germany/ |
| Handles: | Hoppe Atlanta/Germany/ |
