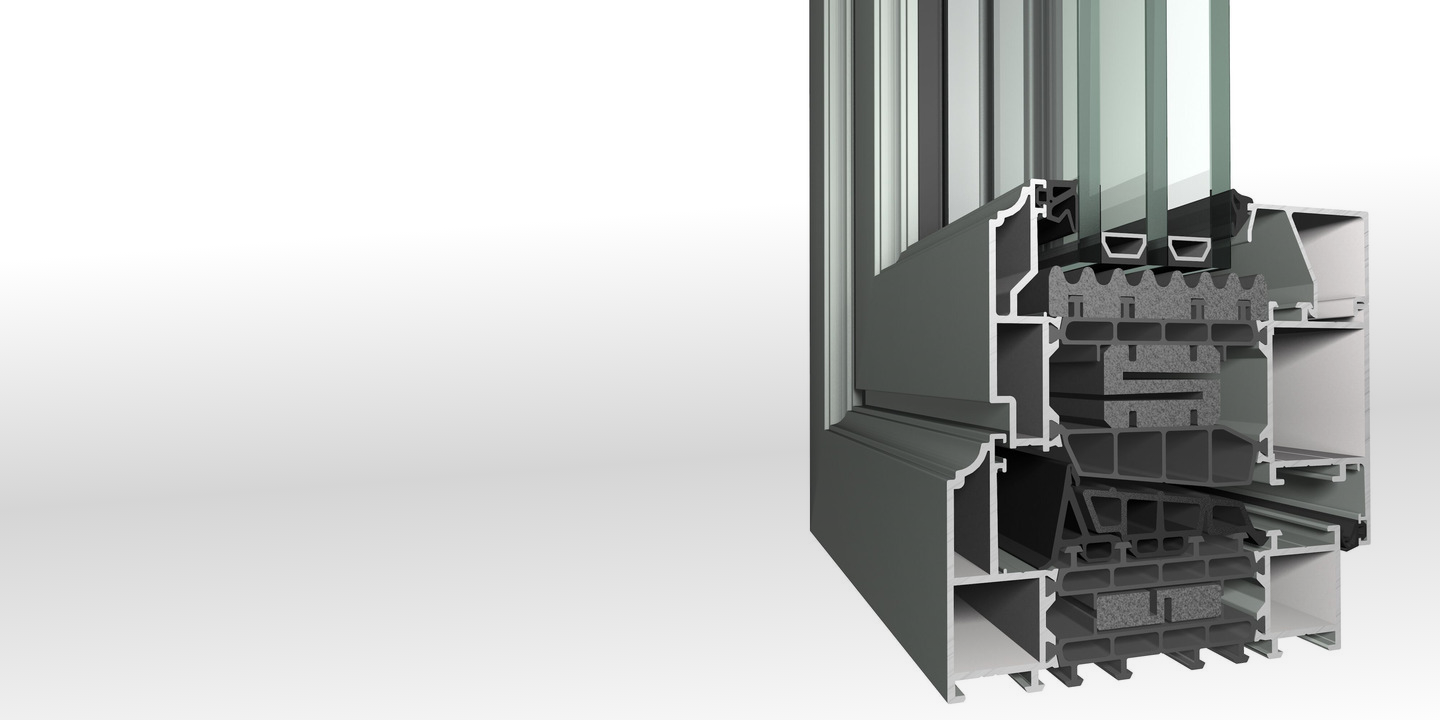

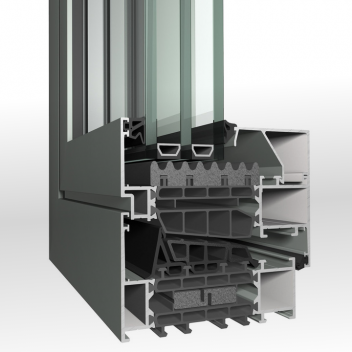

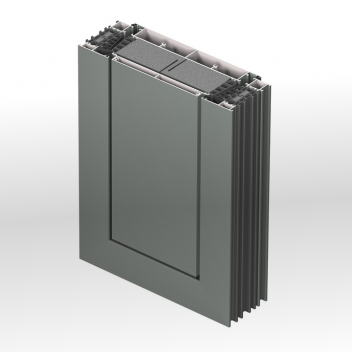

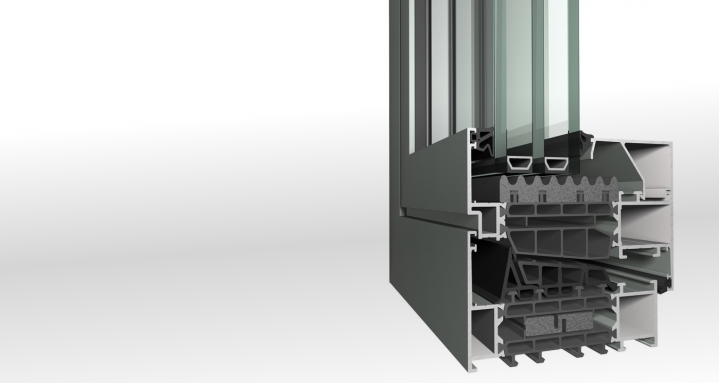

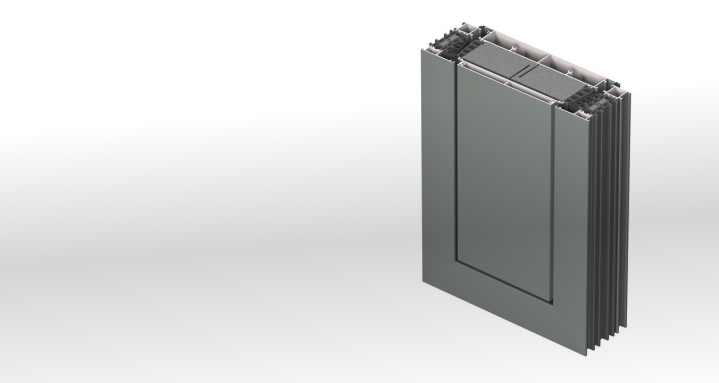

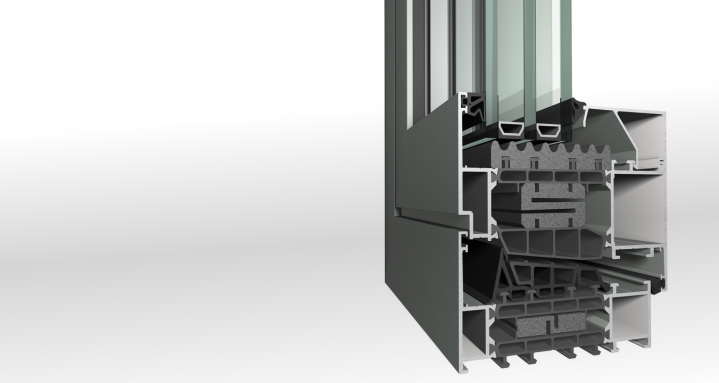

MasterLine 10
-
MasterLine 10 windows are designed for the building trends of today and tomorrow: low energy building, maximum daylight access and safe homes (up to burglar resistance class 3).
The product offering of MasterLine 10 windows is truly unique in its applicability: a full range of transoms and frames, connection profiles with Sliding and Curtain Wall system, but also the design freedom that is offered with the Renaissance and Deco profile range. The windows are offered with a Passive Housing certificate!
MasterLine 10 uses many of the same articles as in MasterLine 8 windows: corner cleats, glazing gaskets and also the same central gasket ensuring the same performances, production efficiency and robustness
All above makes MasterLine 10 the ideal solution for domestic as well as public projects.
Comfort
| Air tightness max. test pressure | 4 (600 Pa) |
| Water tightness | E900 (900 Pa) |
| Wind load resistance | C5 (2000 Pa) |
| Acoustic performance TuTi: | Rw(C;Ctr) = 46(-1;-4) dB DC: Rw(C;Ctr) = 44(-2;-4) dB |
Safety
| Burglar resistance | RC2/WK2 RC3/WK3 |
Energy
| Thermal insulation | (Uf) 119mm: 0,90 W/m²K |
| Min. Visible width frame: inward opening | 60 mm |
| Min. Visible width vent: inward opening | 37 mm |
| Min. Visible width frame-vent: inward opening | 104 mm |
| Min. Visible width frame: outward opening | 27 mm |
| Min. Visible width frame-vent: outward opening | 140 mm |
| Min. Visible width T-profile | 87 mm |
| Max. height vent | 2800 mm |
| Max. width vent | 1200 mm |
| Max. weight vent (element) | 200 kg |
| Overall system depth frame | 97 mm |
| Overall system depth vent | 107 mm |
| Rebate height | 27 mm |
| Min. Glass thickness | 20 mm |
| Max. Glass thickness | 78 mm |
| Min. Glass thickness vent | 30 mm |
| Max. Glass thickness vent | 88 mm |
