Gama Glass
-

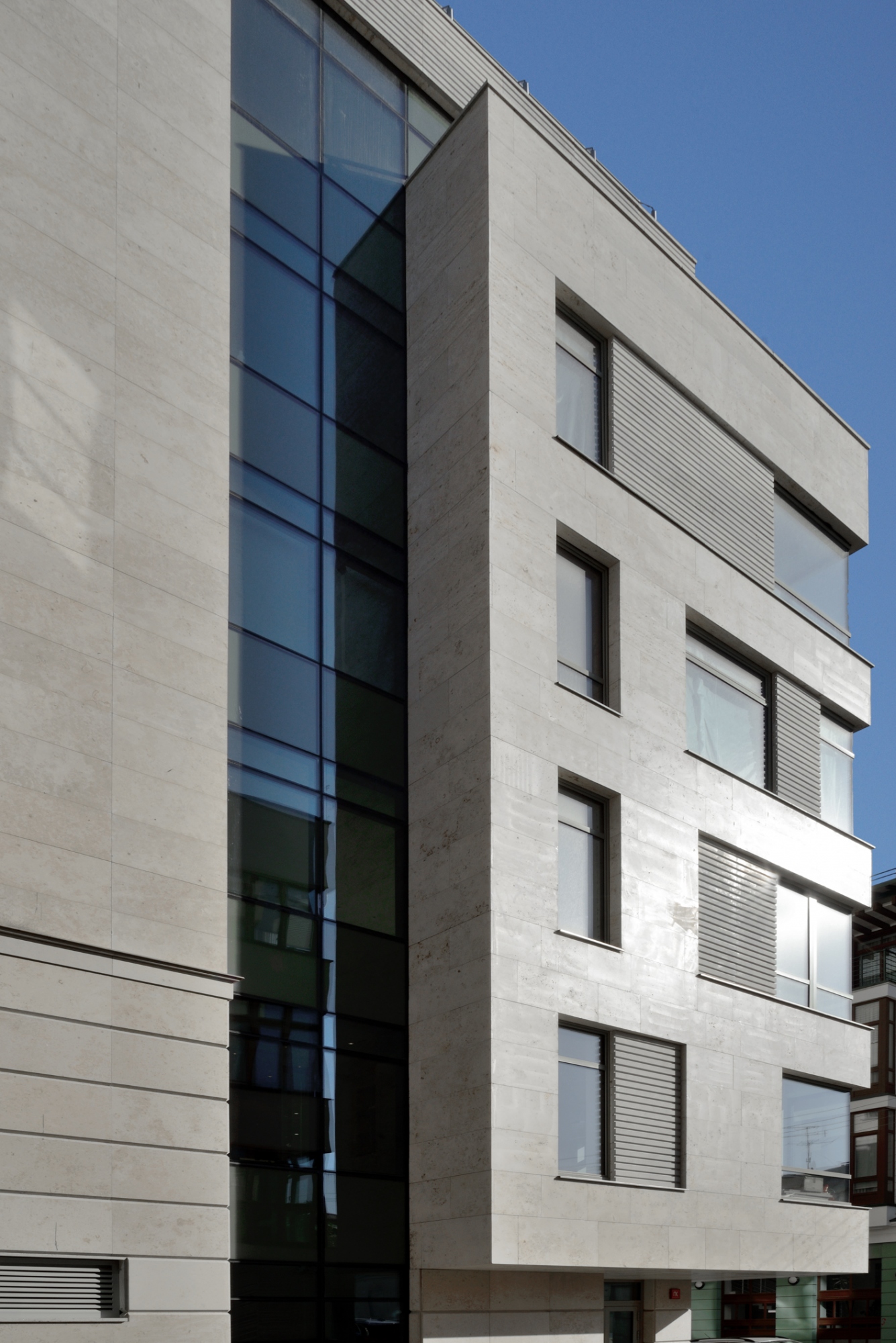

Façade structures are one of the locations where only glass can be seen from the outside. This system was designed in collaboration with our technological partner Gutmann.
| Uw | 1.00 W/m2*K** |
| Rw | 35 dB** |
| Pane | 2–3 glass unit |
| Warranty | 5 years.* |
* The warranty for window outdoor topping is provided subject to the type of wood and painting.
** Uw and Rw calculated for a window:
Measurements: height 1480 mm, width 1230 mm.
Type of opening: internal opening, right.
Bindings: ROTO. Fastening: 7 fixing points in perimeter.
Gaskets: SCHLEGEL foam. Sealing sets: 2.
Pane: glass unit, 4-14Ar-4-14Ar-4 (two glasses covered with selective openings filled with argon gas, differential frames are aluminium).
| Material used: | |
| Types of wood: | tenon pine, non-tenon pine, meranti, larch, gumtree, oak, etc. |
| Painting: | Teknos/Finland/ |
| Aluminium profiles: | Gutmann/Germany/ |
| Bindings: | Roto/Germany/G. U./Germany/ |
| Glasses: | Saint-Gobain/France/ |
| Gaskets: | Schlegel Q-Lon/Germany/ |
| Handles: | Hoppe Atlanta/Germany |
